Wire harness of intelligent security equipment

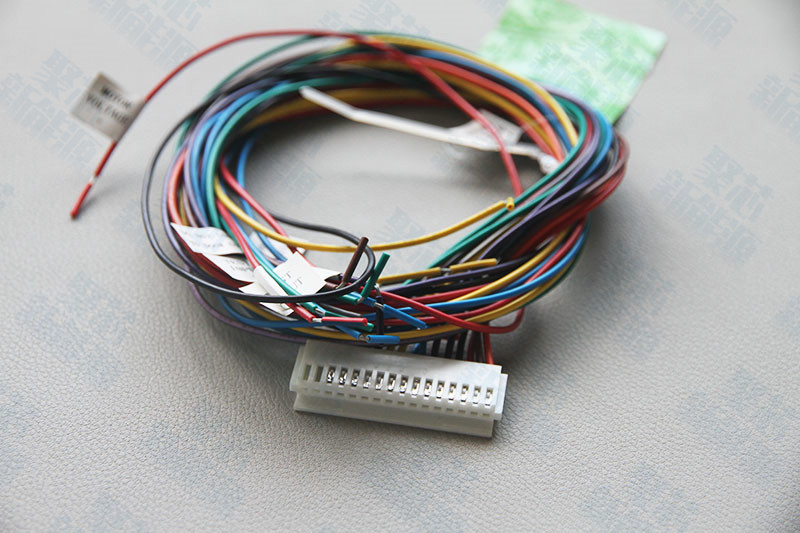

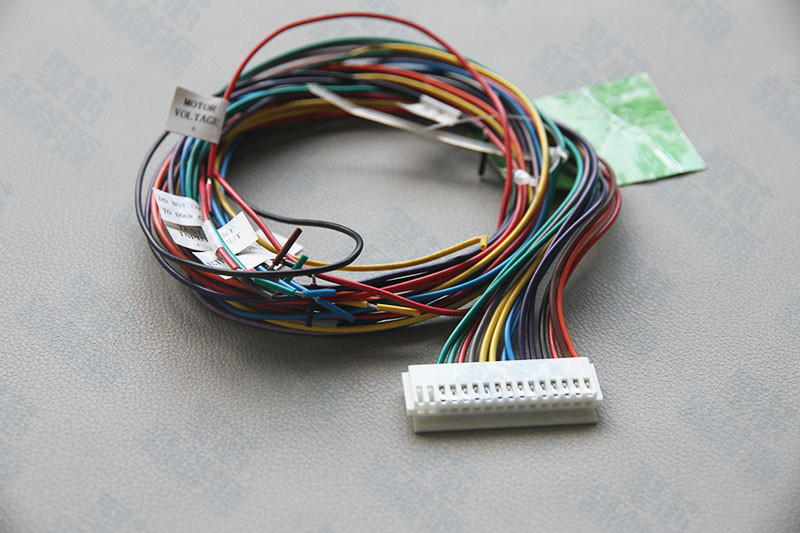

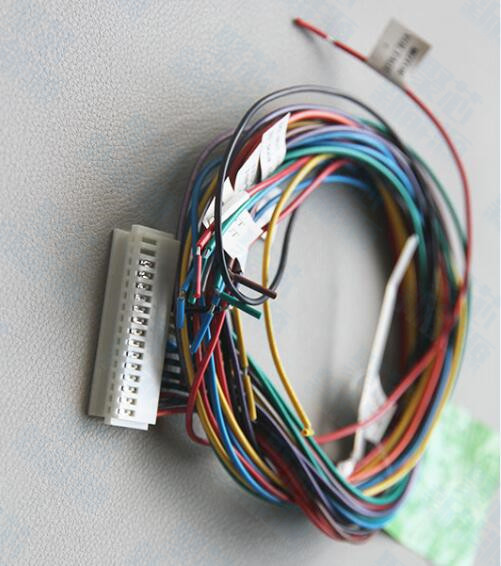

Automatic door connection line for security equipment

Automatic door connection line for security equipment

(1) Wire: UL1007 22AWG 17/0. 16 Maximum resistance 59.4 Ω/KM;
(2) Connector: JST: SHF-001T-0.8 BS, H16P-SHF-AA;
(3) Label: Symmetrical printing of polyester label (L30*W13MM);
(1) Rated temperature: 80 ℃;
Product description: Product Description: (1) Wire: UL1007 22AWG 17/0. 16 Maximum resistance 59.4 Ω/KM; (2) Connector: JST: SHF-001T-0.8 BS, H16P-SHF-AA; (3) Label: Symmetrical printing of polyester label (L30*W13MM); Ele
INQUIRY

Product Description: (1) Wire: UL1007 22AWG 17/0. 16 Maximum resistance 59.4 Ω/KM; (2) Connector: JST: SHF-001T-0.8 BS, H16P-SHF-AA; (3) Label: Symmetrical printing of polyester label (L30*W13MM); Electrical characteristics: (1) Rated temperature: 80 ℃; (2) Rated voltage: 300V; (3) Flame retardant: UL VW-1 and CSA FT1 vertical flame retardant test; Purpose: Mainly used for automatic door connection line in security equipment. Hotline: +86-0756-8685567 . . . .
